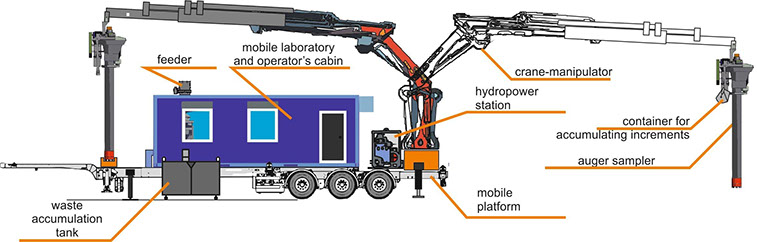

The complex consists of the following parts:

• Mobile platform on which the Complex is installed;
• Module with a set of a sample preparation equipment (module laboratory);
• Auger sampler.

On a single mobile platform the following equipment is placed: manipulator and module with an operator’s cabin and sample preparation equipment inside. The platform can be installed and fixed by retractable outriggers. The operator controls the manipulator out of the cabin where the remote control system of the auger visual monitoring is installed.

• The Sampler corresponds to the relevant international standards.
• By agreement with the customer the Complex may be equipped with an X-Ray fluorescence analyzer.
• Initial material size – up to 300 mm.
• Depth of the sampling – up to 3 m.
• Total power consumption of the Complex does not exceed 75 kW.

Benefits:

• Sampling and sample preparation are done just in one place – in one single Complex.
• The whole complex (both processes of sampling and sample preparation) can be operated by only one operator.
• The Complex does not require any projects or building works. After installation it is ready for being operated just in several hours.
• The Complex is mobile – it can easily be transported to any other places any time.
• The samples are of high representativity.
• Samples can be taken from frozen and wet  material.
