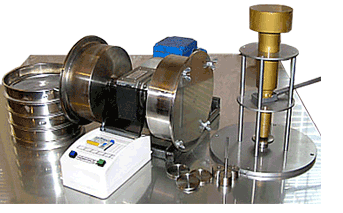

Equipment Set for Roga agglomerating test KP-1-01
Set of equipment KP 1-01 is intended for coke caking capacity determination (aglomerrating test Roga) according to GOST 9318 – 91 (ISO 335 – 74) “Hard coal. Roga method of coke caking capacity determination”. Roga method determines one of the parameters of “types of hard coal International classification” of Economic Commission for Europe.
|
Title |
Quantity |
|
Press |
1 |
|
Weight
made of heat-resistant steel |
4 |
|
Lid made
of heat-resistant steel |
4 |
|
Rod for
taking out weight |
1 |
|
Mixer |
1 |
|
Sieve 0,4 mm |
1 |
|
Sieve 0,3 mm |
1 |
|
Sieve 0,2 mm |
1 |
|
Sieve 1,0 mm |
1 |
|
Pincers |
1 |
|
Brush |
1 |
|
Crusible |
4 |
|
Drum with a lid |
2 |
|
Drum drive |
1 |
|
Control unit |
1 |
|
Passport |
1 |
|
Technical characteristics |
|
|
Power of
the drum drive motor |
0,18 kW |
|
Drive supply power |
220 V |
|
Frequency |
50 Hz |
|
Rotational
speed of the drive output shaft |
50+/-1 rot per
minute |
|
Time relay
of the drive error |
+/- 3 sec |
|
Dims of
the drive with installed drums |
340х440х252 mm |
|
Drive weight |
10,8 kg |
|
Drum weight |
3,4 kg |
|
Control unit dimensions
|
120х85х200 mm |
|
Control unit weight
|
0,8 kg |
|
Mass of
the weight made of heat-resistant steel |
120+/-5g |
|
Mass of
the press weight |
6000+/- 20 g |
|
Press dmensions (without a lever) |
260х260х360 mm |
|
Weight of
the press assembly |
12,2 kg |
