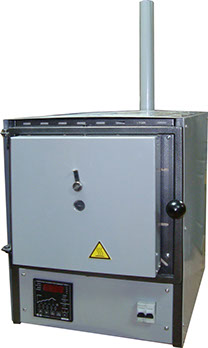

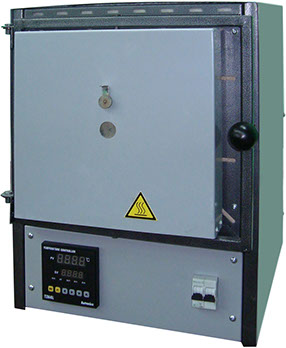

Laboratory Resistance Furnace

Laboratory Electric Resistance Furnace is intended for ash determination in solid fuel according to GOST 11022-95 (ISO 1171-97) “Solid mineral fuel. Methods of ash determination” (model ESKL-8,5/1100-А) and volatile matter content in solid fuel according to GOST 6382-91 “Solid mineral fuel. Methods of volatile matter content determination” (model ESKL-8,5/1100-V).

Technical characteristics

ESKL-8,5/1100-А and -V

Max power consumption in heating mode, kW,  max

3,5

Power

220V, 50 Hz, 1ph

Max permissible temperature inside the chamber, ОС

1100

Range of automatic temperature control, ОС

400-1100

Time for heating the furnace up to 900 ОС, minutes, max

90

Accuracy of temperature stability in the steady thermal regime without charge, ОС

± 2

Temperature non-uniformity in the working area, ОС, max

± 10

Chamber material

ceramic and aluminosilicate insulation

Chamber dimensions  (s x l x h), mm, min

200x250x170

Furnace dimensions (s x l x h), mm

410x660x920

Net weight, kg, max

50
