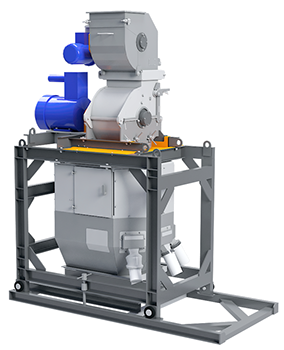

Crushing and Dividing Machine ADSR-3-150MC

ADSR-3-150MC is intended for hard coal, anthracite, oil shale crushing and further splitting and dividing of the crushed material into equal duplicates.

The ADSR-3-150M consists of three main parts installed on the frame:

- feeder;

- crushing hammer-type unit;

- splitting and dividing unit.

Particular qualities:

- duplicates are collected into standard plastic containers;

- the minimum reduction rate (16) allows receiving representative duplicate even from very little sample volume - 16 kg;

- low power consumption;

- easy and fast cleaning procedure.

Technical data

Particles size of the initial material, mm

0 - 150

Particles size after crushing, mm (1)

≤ 3

Min volume of the initial material, dm3, min

16

Max volume of the initial material, dm3, max

500

Humidity of the initial material sample, % max(4)



16

Productivity, kg/h, max

1500

Quantity of duplicates, pcs

3

Sample container volume, dm3

1,0

Reduction index (set by an operator according to the weight of the initial material)

16 - 500

Number of phases, voltage, supply mains frequency

3 ph, 380 V, 50 Hz

Power, kW, max

9

Measurements (H x W x L), mm, max

2325 × 2020 × 1150

Weight of the Machine (with a feeder), kg,

1000

Feeder weight, kg, max

200

(1) The material size after crushing depends on the sieve type and its mesh size. The necessary sieve should be selected by test (depending upon the type and moisture contents of the initial material) so that the sieve’s mesh during operation shouldn’t occur 100% puttied;

(2) to receive a representative laboratory sample min 500 g;

(3) to avoid overflowing the container for duplicates;

(4) the acceptable moisture content depends on the crushed material type and the type of the sieve.
