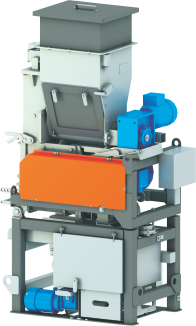

Automated Crushing and Dividing Machine ADSM-3-25M



ADSM-3-25M is a unique development of Coal Engineering Company approved by specialists and coal consumers. It is specially intended for samples of black and brown coal, anthracite, oil shale and products of enrichment with the further reduction and dividing of the crushed material into equal in quantity and quality parts (duplicates).

It is specially designed for crushing high moisture products and with a tendency to stick and clog sieves in the process of crushing.

The Machine corresponds to the demands of the local and international standards.





Technical Data

Particles size of the initial material, mm

0-25

Particles size after crushing, mm [1]

0-3

Min weight of the initial sample, kg

8

Max weight of the initial sample or its part loaded into bunker, kg

50

Humidity of the initial material sample, % max:

- brown coal;

- bituminous coal, anthracite and sludge



50

20

Productivity, kg per hour, max:

- while preparing a laboratory sample out of initial material of normal humidity[2]

- while preparing a laboratory sample out of wet initial material



300

100

Amount of the simultaneously prepared duplicates of the laboratory sample, pcs

4

Volume of a duplicate container, dm3

1

Weight of one duplicate (set by the operator), g

500-800

Average time needed to prepare a laboratory sample out of a split sample of 8 kg, minute:

- initial material of normal humidity[2]

- wet initial material





4

8

 Average time of laboratory sample preparation out of a split sample of 50 kg, minutes:

- initial material of normal humidity[2]

- wet initial material





12

20

 Average time needed to clean the Machine out of the remains of the previous sample, minutes

- initial material of normal humidity[2]

- wet initial material



3

5

Number of electrical phases

3

Frequency, Hz

50

Supply voltage, V

380

Power, kW

9,0

Measurements (H x W x L), mm, max

1790х1050х990

Weight of the Machine with a control cabinet, kg,

650

[1] Particles size after crushing depends on the sieve type and the size of its sells.

[2] “Material of normal humidity” means material which is not prone to sticking or lamping.
